Basic Example

In this example two input files are used to generate a basic data set for an Earth-like planet orbiting a Sun-like star 10 pc away. No GPUs are specified and hence the code is run on the CPU.

Import modules and specify paths

from pathlib import Path

import matplotlib.pyplot as plt

from phringe.api import PHRINGE

config_file_path = Path('../_static/config.py')

Run PHRINGE on CPU

phringe = PHRINGE()
phringe.run(
    config_file_path=config_file_path,
    write_fits=False,
    create_copy=False
)

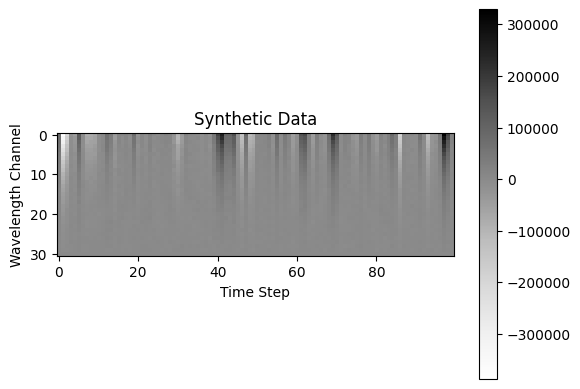

Get and Plot Data

data = phringe.get_data()

plt.imshow(data[0], cmap='Greys')
plt.title('Synthetic Data')
plt.ylabel('Wavelength Channel')
plt.xlabel('Time Step')
plt.colorbar()
plt.show()
